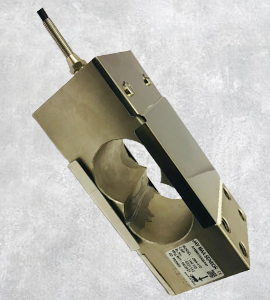

A single point load cell is also known as a platform load cell, this is because platform scales are one of the most popular applications for a single point load cell. Single point load cells are the most common type of load cell world-wide.
Single point load cells are extremely popular in low capacity compact weighing systems. Their unique ability to accept off centre loads makes them well suited to industrial applications.
Because they are so versatile, single point load cells can be used to weigh anything from something as common as sugar to extreme matter such as dynamite and everything in between.

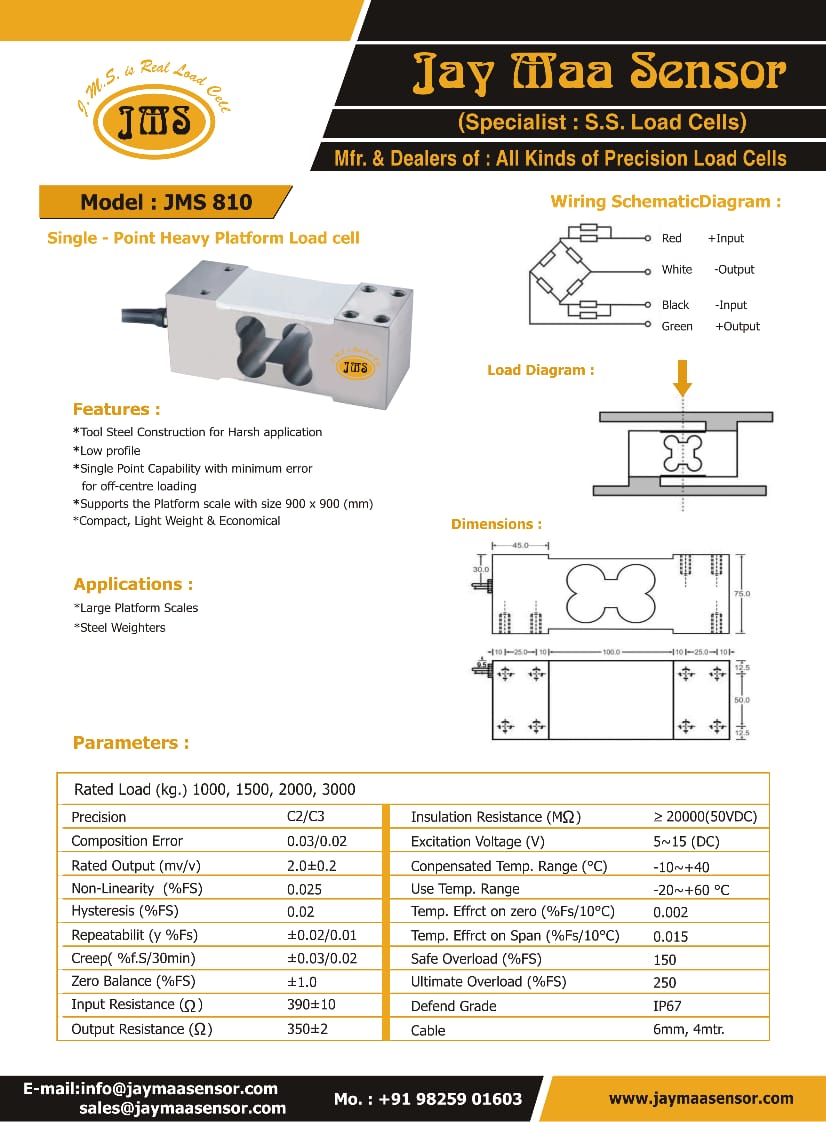

The Load Cell JMS 810 has been designed keeping in mind that our clients should get only the best from our end. This product is absolutely perfect for large platform scales as well as steel weighers. The following characteristics of the product shall further describe the true nature of the equipment:
Therefore, it can be seen clearly that we at Jay Maa Sensor have been very careful in selecting the best materials while designing the tool. The low-profile nature of the equipment is perfect for its application in every purpose. The product is available at a reasonable price range online.
Applications:
| Related Load (kg.) 1000, 1500, 2000, 3000 | |
| PrecisionC2 / C3 | Insulation Resistance(MΩ) ≥2000(100VDC) |
| Composition Error0.03 / 0.02 | Excitation Voltage (V)10~15 (DC) |
| Rated Output (mv/v)2.0 ± 10% | Compensated temp. Range (°C)-10~+40 |
| Non-Linearity (%FS)0.025 | Use Temp. Range (°C)-20~+60 |
| Hysteresis (%FS)0.01 | Temp. Effect on Zero (%FS/10°C)0.0020 |
| Repeatability (%FS)0.02 / 0.01 | Temp. Effect on Span (%FS/10°C)0.0015 |
| Creep (%FS/30min)0.03 / 0.02 | Safe Overload (%FS)150 |
| Zero Balance (%FS) ± 1.0 | Ultimate Overload (%FS)250 |
| Input Resistance (Ω)400 ± 10 | Defend GradeIP65 |
| Output Resistance (Ω)350 ± 2 | Cable6mm, 5mtr |
