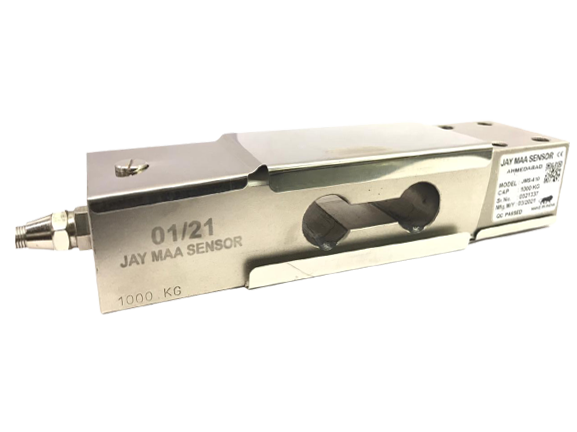

Our single point load cells are a great candidate for blanket orders for modified cable lengths, capacities, outputs, or wiring codes. Mounts and spacers are available to ensure you get the most accuracy and reliability out of your single point load cell.
On the topic of reliability, Load Cell Central offers the best after-sale support in the business. With a 24/7 technical support line, you will never be left in the dark. You can count on us to improve your efficiency, reduce your down time, and take care of all your load cell needs.Single point load cells are a staple of the load cell industry. Seen most often in bathroom, bench, and small platform scales, single point load cells excel in their ability to accurately weigh in applications in which products may be placed anywhere in a relatively large platform area. This insensitivity to off-center loads is a capability known as moment compensation. A single cell can accurately weigh an area much larger than its footprint. This ability to use only one load cell instead of four makes the single point load cell a very economical solution for dozens of applications including but not limited to: Bathroom scales, bench scales, platform scales, hopper and vessel weighing, parts counting, packaging, check-weighing, OEM products, retail scales, conveyor scales, production processes, low-budget applications, and medical scales.
As well as being able to accept off centre loads, single point load cells are often selected for the following reasons;
Many of the single point load cells we can offer are protection
rated, either IP67, IP66 or IP65. We can offer platform sizes from
200X200mm up to 1200mmX1200mm and capacities from 300g to 2000kg.
Single point load cells are often used in small to medium-sized applications, these applications include;
| Related Load (kg.) 100, 200, 300, 500, 750, 1000 | |
| PrecisionC2 / C3 | Excitation Voltage (V)10~15 (DC) |
| Composition Error0.03 / 0.02 | Excitation Voltage (V)10~15 (DC) ≥20000(100VDC) |
| Rated Output (mv/v)2.0 ± 10% | Compensated temp. Range (°C)-10~+40 |
| Non-Linearity (%FS)0.025 | Use Temp. Range (°C)-20~+60 |
| Hysteresis (%FS)0.01 | Temp. Effect on Zero (%FS/10°C)0.0020 |
| Repeatability (%FS)0.02 / 0.01 | Temp. Effect on Span %FS/10°C)0.0015 |
| Creep (%FS/30min)0.03 / 0.02 | Safe Overload (%FS)150 |
| Zero Balance (%FS) ± 1.0 | Ultimate Overload (%FS)250 |
| Input Resistance (Ω)400 ± 10 | Defend GradeIP65 |
| Output Resistance (Ω)350 ± 2 | Cable6mm, 2.5mtr |
